Connecting Batteries

Message Share Topic Printable Version Google Delicious Digg StumbleUpon Windows Live Yahoo Bookmarks reddit Facebook MySpace Newsvine Furl Topic Search Topic Options Post Reply Create New Topic

I thought some of you might find the below link interesting.  It applies only to connecting multiple 12v.
batteries (NOT 6v. golf cart batteries).  Since most probably won't run more than 2 batteries, of particular
note is the 6th paragraph from the bottom regarding connecting in a "criss cross" manner.

http://www.smartgauge.co.uk/batt_con.html

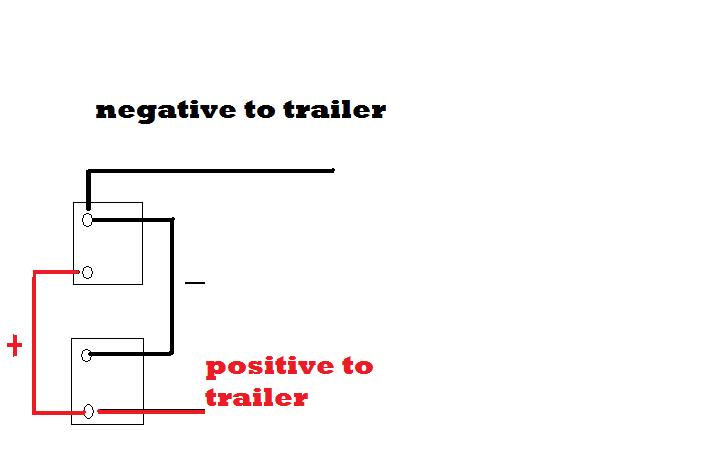

I made the following to illustrate the "criss cross".  The battery positives are connected together, as are the battery negatives.  This is referred to as "wired in paralel"; which keeps the voltage the same (12V.), but increases the amp/hours available.  The "load" (and charging source) are connected - positive to one battery and the negative to the other.  This will allow the batteries to discharge equally and yield better performance.

Author	Message Share Topic Printable Version Google Delicious Digg StumbleUpon Windows Live Yahoo Bookmarks reddit Facebook MySpace Newsvine Furl Topic Search Topic Options Post Reply Create New Topic
Guests Members Profile Send Private Message Find Members Posts Add to Buddy List Guest Group	Topic: Connecting Batteries Posted: 16 Apr 2011 at 7:27am
	I thought some of you might find the below link interesting. It applies only to connecting multiple 12v. batteries (NOT 6v. golf cart batteries). Since most probably won't run more than 2 batteries, of particular note is the 6th paragraph from the bottom regarding connecting in a "criss cross" manner. http://www.smartgauge.co.uk/batt_con.html I made the following to illustrate the "criss cross". The battery positives are connected together, as are the battery negatives. This is referred to as "wired in paralel"; which keeps the voltage the same (12V.), but increases the amp/hours available. The "load" (and charging source) are connected - positive to one battery and the negative to the other. This will allow the batteries to discharge equally and yield better performance.

techntrek Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group - pHp Joined: 29 Jul 2009 Location: MD Online Status: Offline Posts: 9059	Posted: 17 Apr 2011 at 2:54pm
	Too funny, a solar forum I visit a lot refers to that site to show people how to wire up battery banks properly. Lots of other good articles on that web site such as the ones on Peukert Effect.
	Doug ~ '10 171 (2009-2015) ~ 2008 Salem ~ Pod instruction manual
