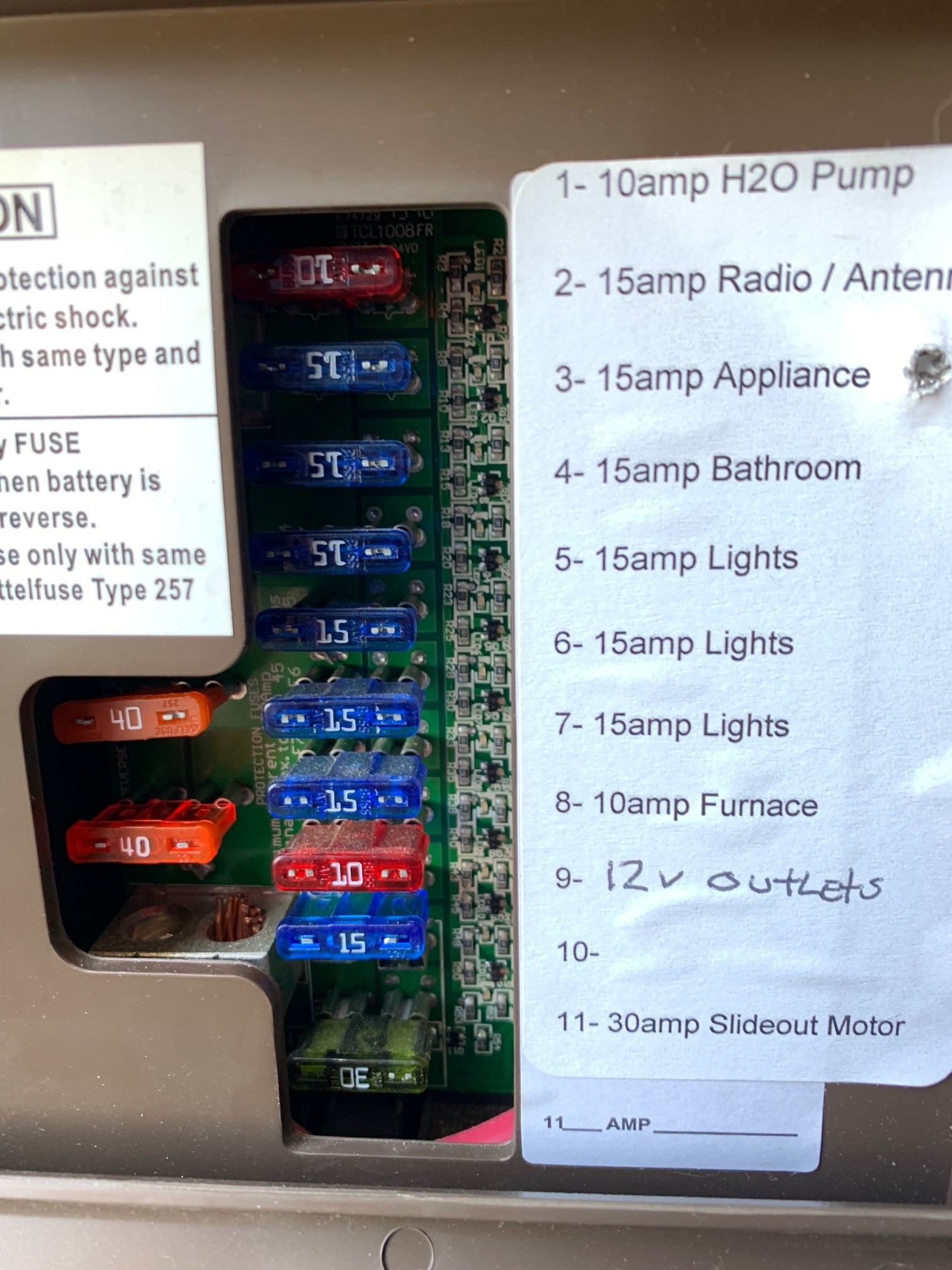

I'm new to R-Pods (and campers in general) so apologies if this is a total noob question: If I understand correctly, my R-Pod 178 is wired for 30 amps -- but I see 40 amp fuses in the fuse box. Did the previous owner put in the wrong fuses (i.e., should I switch out to 30 amps)?
I also want to add a surge protector between between wall outlet and trailer extension cord. I assume I should use a 30 Amp surge protector designed specifically for RVs? |
|
offgrid
Senior Member Joined: 23 Jul 2018 Online Status: Offline Posts: 5290 |
Post Options Quote Reply Posted: 07 Jun 2022 at 3:53pm |
There are two separate electrical systems in your trailer. The fuses in your photo are for the 12Vdc system. The circuit breakers are for the 120Vac system.
The 30A connector on the side of the trailer supplies the 120Vac system. Your surge protector would go on the cord that you plug into this receptacle and yes you want an RV surge protector, 120Vac, 30A. Once the 120Vac power gets to your breaker panel there is a 120Vac to 12Vdc converter which charges your trailer battery which in turn supplies the 12V items in the trailer. Those include the lights, water pump, bath fan, slide, furnace fan, and refrigerator. You should also be able to charge your trailer battery via the 7 way connector from your tow vehicle. The fridge can also be run set to run on 120Vac or propane. Don't try to run the fridge on 12Vdc unless you are driving and the battery is getting charged by your tow vehicle, it uses too much power from your trailer battery otherwise. Use the propane setting when stopped unless plugged into 120Vac. The micro and roof air conditioner, and the wall outlets only run on 120Vac. |
|
