Posts: 3990 		Direct Link To This Post Topic: Schematic
    Posted: 23 May 2013 at 9:40am
I have worked on my 2009 171 Rpod and also a 2013 171 Rpod (doing Mods for another owner now) and have the wiring to be run different. Easier way is as Furpod stated is start opening up as needed. You could try contacting Forest River to see if the have one for your year and model they would release. Is there something your husband is trying to run? They do try to have the dealers do the work on them and the dealers try not giving that information out.
Back to Top
Alex&Marie View Drop Down
Groupie
Groupie
Avatar

Joined: 25 Feb 2012
Location: Virginia
Online Status: Offline
Posts: 63 		Direct Link To This Post Posted: 22 May 2013 at 7:48pm

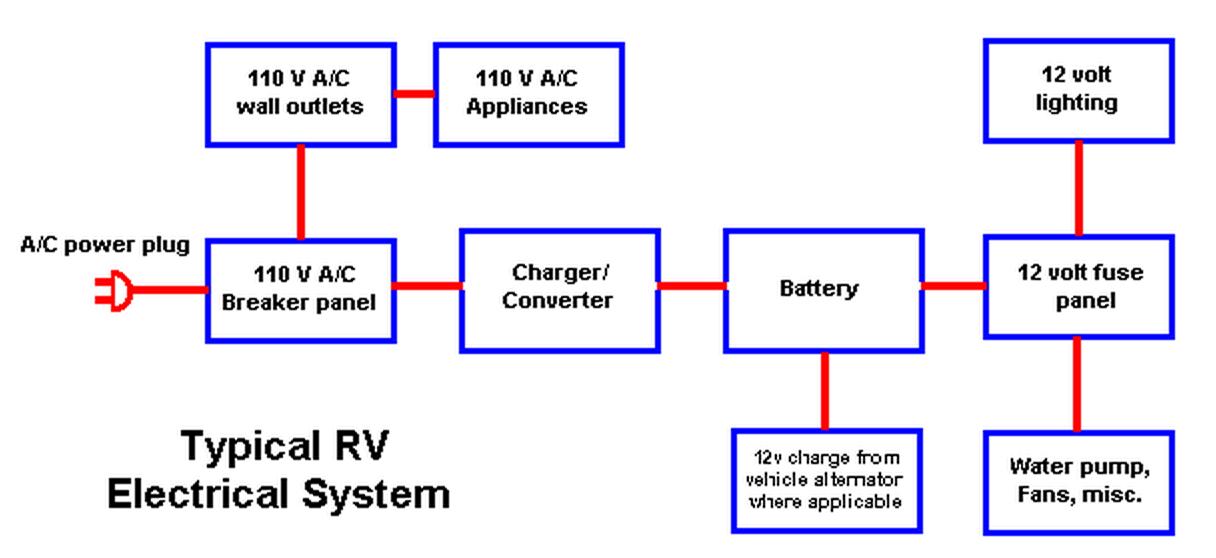

found this somewhere, not the detail you probably want but gives a concept of what is tied to what.
Alex and Marie
2012 R-pod 177
2006 Toyota Tundra
Back to Top
furpod View Drop Down
Moderator Group - pHp
Moderator Group - pHp
Avatar

Joined: 25 Jul 2011
Location: Central KY
Online Status: Offline
Posts: 6128 		Direct Link To This Post Posted: 22 May 2013 at 7:25pm
Each model is laid out different..

But it's basic stuff. Open whatever compartment is above the power distribution box.. have a look.
Back to Top
bhamster View Drop Down
Senior Member
Senior Member


Joined: 19 May 2011
Location: Washington
Online Status: Offline
Posts: 165 		Direct Link To This Post Posted: 22 May 2013 at 6:07pm
Not that I know of... the electrical system is pretty crude though and pretty easily traced. Is there a particular issue you're having? I could probably draw something up for a particular area...
Back to Top
mountain mist View Drop Down
Senior Member
Senior Member
Avatar

Joined: 25 May 2010
Location: Gatlinburg Tenn
Online Status: Offline
Posts: 426 		Direct Link To This Post Posted: 22 May 2013 at 5:06pm
Is there an electrical schematic for the r-pod.?

There seems not to be a lot on this little rig for the owner who wants to know about systems. Are they just wanting us to leave them alone and let our dealer take care of it. The hubby just feels he likes to know what makes it tick. ME,, I just want it to WORK and camp.lol
'11 Forest River r.pod 171
'10 Ford Edge
ESCAPE POD
Trudi and Austin mini-schnauzers
change here, Trudi has gone, Austin now has a small black schnauzer buddy, Bentley
